TL(R) Desulpurization Pump

TL(R) series desulfurization pump is a single-stage, single-suction, horizontal centrifugal pump, mainly used as the circulating pump for the absorption tower in wet FGD (Flue Gas Desulfurization) systems. It offers a wide flow range, high efficiency, and energy-saving performance. This series is equipped with a compact X-shaped support bracket, which significantly reduces the required installation footprint. The pump’s flow components are designed using advanced CFD (Computational Fluid Dynamics) simulation technology, ensuring reliable design and high operating efficiency.

The TL(R) series features an adjustable bearing assembly that allows for adjustment of the impeller position within the pump chamber, ensuring the unit remains in an optimal operating condition. The pump adopts a back-pull-out structure, which simplifies maintenance. There is no need to disassemble the inlet and outlet pipes during maintenance. The pump end is equipped with a double-row tapered roller bearing, while the drive end uses a cylindrical roller bearing. The bearings are lubricated with thin oil, improving operating conditions and greatly extending bearing life. A containerized mechanical seal, specifically designed for desulfurization processes, is adopted to ensure reliable sealing performance.

For material selection, the pump body, pump cover, and joint plate—being pressure-bearing components—are made of ductile iron. In the rubber-lined pump configuration, the impeller and suction cover are made of A49 duplex stainless white cast iron. The front sleeve, rear sleeve, and rear guard plate are made of natural rubber, offering excellent wear resistance, light weight, and cost efficiency.

In the metal-lined configuration, the impeller, sleeves, front guard plate, and rear guard plate are all made of A49 duplex stainless white cast iron, while the suction cover is made of ductile iron with a rubber lining.

If you require an engine model that is not currently available on our website, please contact the EMAC sales team for technical specifications and related documents. Our well-trained sales and engineering teams are ready to assist you with all product and technical information available here at Naipu Slurry Pump.

coming soon

General Specifications of TL(R) Series

Flow range:	1600~14000 m³/h
Head range:	23~40 m
Speed range:	350~960 r/min
Maximum allowable power:	N/A

TL(R) Model Description

600X-TL(R)
600 : Outlet diameter of dredging pump (mm)
X : Frame type (X-oil lubrication)
TL : Desulphurization pump FGD
(R) : Rubber liners
The pump flow components adopt advanced CFD flow simulation analysis technology
The pump end adopts double-row tapered roller bearings, the drive end adopts cylindrical roller bearings, and the bearings are lubricated with thin oil

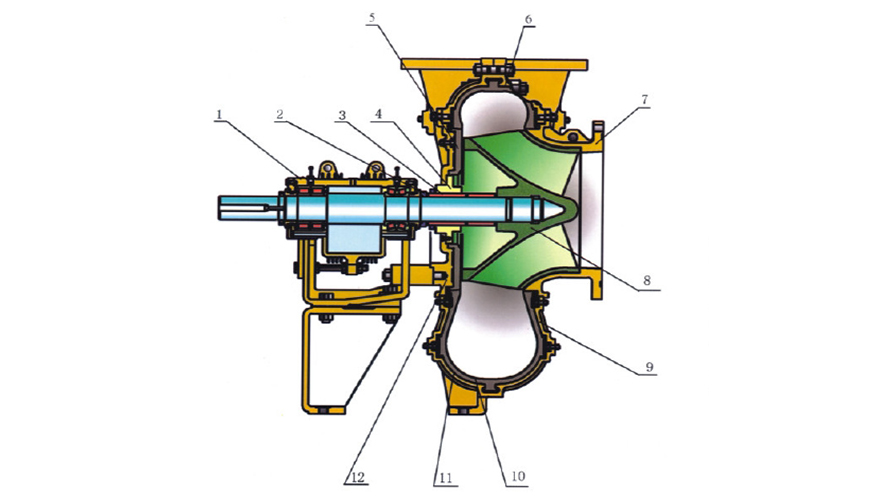

Constructional Drawing for Type TL(R)


NO	Part Name
1	FRAME
2	DISASSEMBLY RING
3	SHAFT COVER
4	MECHANICAL SEAL
5	REAR LINER
6	FRONT LINER
7	INHALE PLATE
8	IMPELLER
9	COVER PLATE
10	FRAME PLATE LINER
11	PUMP CASING
12	CONNECTING PLATE

Clear Water Performance for TL(R) Desulphurization Pump

ParameterType	Flow Rate		Head (H)	Speed (n)	Efficiency (η)	NPSH (r)	Impet Diameter	Outlet Diameter
	m³/h	L/S	Head (H)	Speed (n)	Efficiency (η)	NPSH (r)	Impet Diameter	Outlet Diameter
	m³/h	L/S	m	r/min	%	m	mm	mm
350TL(R)	1600	444	25	960	82	4.5	400	350
400TL(R)	2500	694	25	725	83	5	450	400
500TL(R)	3750	1040	25	725	85	5	500	500
600X-TL(R)	5300	1472.2	25	590	88	5.6	700	600
700X-TL(R)	7200	2000	25	480	88	6	800	700
800X-TL(R)	10000	2777.8	40	480	89	7	900	800
900X-TL(R)	14000	3888.9	23	350	90	5	1000	900
