SGB ZFC Series Gravel Pump
This product series is developed based on the “ZJ series double-casing slurry pump”. The ceramic material is a composite ceramic, made by mixing resin with silicon carbide ceramic particles of different sizes and other auxiliary materials in a specific ratio and process, followed by a curing reaction. Ceramic parts are generally structural components, manufactured through a special mold casting process, and finally cured at a higher temperature to ensure the ceramic material meets performance requirements.
The ceramic material in this series has good toughness, is machinable, exhibits excellent corrosion resistance (mainly acid corrosion, except for high-concentration HF acid), and good wear resistance. It is mainly used in medium to low abrasion conditions with highly corrosive media (sulfuric acid, hydrochloric acid, nitric acid, phosphoric acid, etc.) with a media particle size of less than 3mm. It is widely used in chemical, electrolytic, and non-ferrous metal hydrometallurgical industries, with a service life more than three times that of metal pumps. The recommended operating temperature is not higher than 120℃.
If you require a pump model that is not currently available on our website, please contact the EMAC sales team for technical specifications and documentation. Our well-trained sales and engineering teams are ready to assist you with all product and technical documentation available from Naipu Slurry Pump.
General Specifications of ZFC Series
| Flow rate: | 24~2300 m³/h |
| Head: | 8~110 m |
| Speed range: | 500~1480 r/min |
| Power on Shaft: | N/A |
ZFC Model Description
coming soon

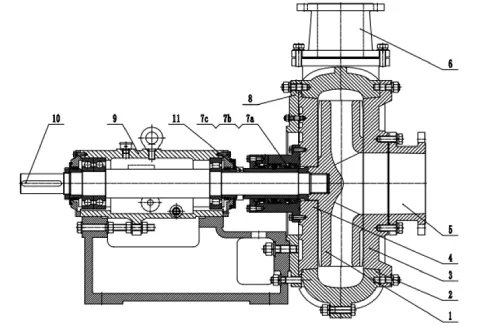

Constructional Drawing for Type ZFC
| NO | Part Name |
| 1 | CERAMIC IMPELLER |
| 2 | CERAMIC VOLUTE |
| 3 | CERAMIC FRONT GUARD PLATE |
| 4 | CERAMIC REAR GUARD PLATE |
| 5 | INLET SHORT PIPE |
| 6 | OUTLET SHORT PIPE |
| 7a | AUXILIARY IMPELLER + PACKING SEAL |
| 7b | PACKING SEAL |
| 7c | MECHANICAL SEAL |
| 8 | TAIL COVER |
| 9 | BRACKET ASSEMBLY |
| 10 | KEY |
| 11 | DISASSEMBLY RING |
