SGB ZJG Slurry Pump

SGB ZJG series slurry pumps In order to meet the growing demands of the electric power, metallurgy, and coal industries, our company has designed and developed the ZJG(P) Series Up-to-date Generation Slurry Pumps. These pumps feature large capacity, high head, and multistage operation, and are engineered for tasks such as ash and sludge removal and transporting liquid-solid mixtures. The design is based on years of experience in slurry pump manufacturing and incorporates advanced technologies from both domestic and international research.

The ZJG(P) series slurry pumps adopt modern CAD design, offering excellent hydraulic performance, high efficiency, and low wear rate.They feature a wide flow passage, ensuring non-clogging operation and good NPSH performance. A combination of expeller seal, packing seal, and mechanical seal is used to effectively prevent slurry leakage. Reliable structural design ensures a long MTBF (Mean Time Between Failures). The pumps use metric bearings with oil lubrication, along with a well-designed lubrication and cooling system, ensuring low operating temperatures for the bearings. The wet-end parts are made of materials with excellent wear-resistant and corrosion-resistant properties. These pumps are also suitable for seawater ash removal, providing protection against salt corrosion, mist exposure, and electrochemical corrosion. The pumps can be operated in multistage series within the permissible pressure range. The maximum allowable working pressure is 3.6 MPa. With rational structure, high efficiency, reliable performance, and ease of maintenance, the ZJG(P) series pumps are widely applicable for handling abrasive and corrosive solid-liquid mixtures in the electric power, metallurgy, mining, coal, construction material, and chemical industries.

If you require an engine model that is not currently available on our website, please contact the EMAC sales team for technical specifications and related documents. Our well-trained sales and engineering teams are ready to assist you with all products and technical support provided by SGB Slurry Pump.

coming soon

General Specifications of ZJG Series

Flow range:	10.5~533 L/S
Head range:	23.9~94.2 m
Speed range:	740~1480 r/min
Power on Shaft:	5.73~567 kW

ZJG Model Description

100 ZJG(P)
100 : Outlet diameter (mm)
ZJG : High head slurry pump
P : Multi-stage pump ( 3-4 tages, 1-2 stage without the mark)
Be operated in series with multi-stage within permissible pressure. The permissible maximum working pressure is 3.6Mpa.

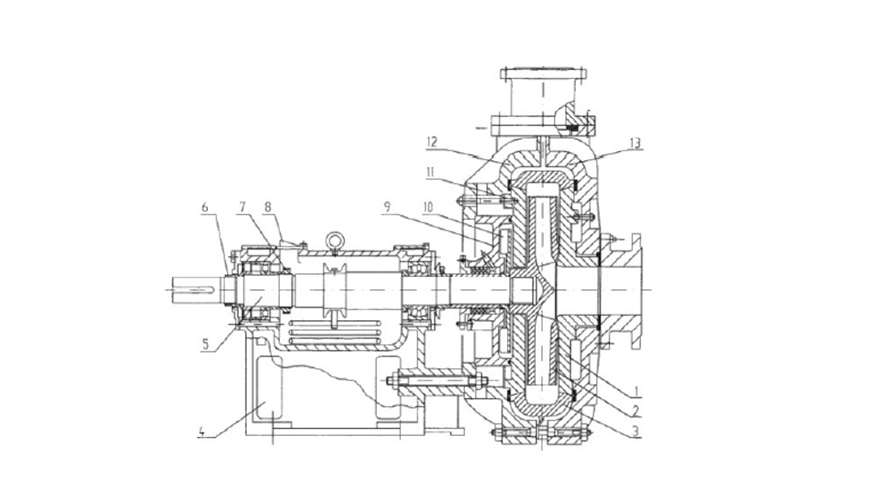

ZJG Slurry Pump


NO	Part Name	NO	Part Name	NO	Part Name
1	FRONT LINER INSERT	6	ADJUSTING SCREW (B)	10	EXPELLER
2	IMPELLER	7	ADJUSTING SCREW (A)	11	BACK LINER INSERT
3	VOLUTE	8	ADJUSTING COVER	12	PUMP BODY
4	FRAME BODY	9	EXPELLER RING	13	PUMP COVER
5	SHAFT

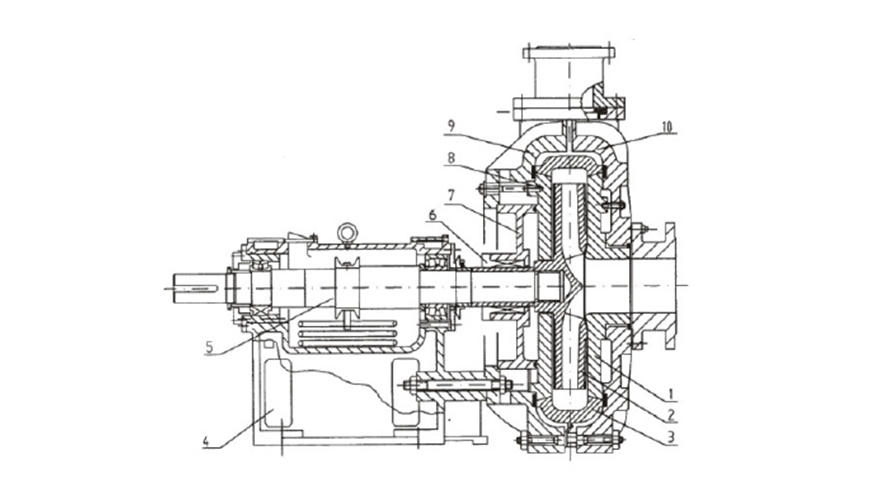

ZJGP Slurry Pump


NO	Part Name	NO	Part Name	NO	Part Name
1	FRONT LINER INSERT	5	SHAFT	8	BACK LINER INSERT
2	IMPELLER	6	MECHANICAL SEAL	9	PUMP BODY
3	VOLUTE	7	SEALING BOX	10	PUMP COVER
4	FRAME BODY

Model	Speed (n)	Capacity (Q)	Head (H)	Power of Shaft (Pa)	Eff (η)	(NPSH)r	Motors
	Speed (n)	Capacity (Q)	Head (H)	Power of Shaft (Pa)	Eff (η)	(NPSH)r	Model	Power/Voltage
	r/min	m³/h	m	kW	%	m		kW/V
200ZJG-I-D50	1480	291 455 628	74.8 63.3 49.5	101.6 116.3 130.2	58.3 67.4 65.0	4.0	Y315M-4 Y315L1-4 Y315L2-4	132/380 160/380 200/380
200ZJG-I-D50	980	193 301 416	32.8 27.8 21.7	29.5 33.8 37.8	58.3 67.4 65.0	2.3	Y280S-6 Y280M-6 Y290M-6	45/380 45/380 55/380
200ZJG-I-A45	1480	272 447 538	72.9 57.5 47.0	82.8 102.9 111.1	65.3 68.0 62.0	10.7	Y280M-4 Y315M1-4 Y315M1-4	90/380 132/380 132/380
200ZJG-I-A45	980	180 296 356	32.0 25.2 20.6	24.0 29.9 32.2	65.3 68.0 62.0	4.7	Y225M-6 Y250M-6 Y250M-6	30/380 37/380 37/380
150ZJG-I-D47	1480	201 371 477	69.5 56.4 46.3	72.6 91.0 102.6	52.4 62.6 58.6	3.7	Y315S-4 Y315M-4 Y315M-4	110/380 132/380 132/380
150ZJG-I-D47	980	133 246 316	30.5 24.7 20.3	21.1 26.4 29.8	52.4 62.6 58.6	2.1	Y225M-6 Y250M-6 Y280S-6	30/380 37/380 45/380
150ZJG-I-B45	1480	223 372 458	72.5 60.1 48.8	75.7 93.2 100.5	58.1 65.4 60.5	7.3	Y280M-4 Y315S-4 Y315S-4	90/380 110/380 110/380
150ZJG-I-B45	980	147 247 303	31.8 26.3 21.4	22.0 27.0 29.2	58.1 65.4 60.5	3.2	Y225M-6 Y250M-6 Y250M-6	30/380 37/380 37/380
100ZJG-I-C55	1480	145 198 226	110.4 102.3 98.4	93.5 107.7 121.3	46.6 51.2 49.9	5.2	Y315S-4 Y315M-4 Y315L1-4	110/380 132/380 160/380
100ZJG-I-C55	980	96 131 150	48.4 44.9 43.1	27.1 31.3 35.2	46.6 51.2 49.9	2.8	Y250M-6 Y280S-6 Y280S-6	37/380 45/380 45/380
100ZJG-I-D46	1480	102 140 216	67.9 61.5 42.4	40.1 46.6 56.9	47.0 50.3 43.8	5.1	Y250M-4 Y280S-4 Y280S-4	55/380 75/380 75/380
100ZJG-I-D46	980	68 93 143	29.8 27.0 18.6	11.6 13.5 16.5	47.0 50.3 43.8	2.7	Y200L1-6 Y200L2-6 Y225M-6	18.5/380 22/380 30/380
100ZJG-I-B42	1480	96 149 205	70.7 63.8 56.3	35.6 42.4 49.7	51.9 61.0 63.2	2.8	Y225M-4 Y250M-4 Y280S-4	45/380 55/380 75/380
100ZJG-I-B42	980	64 99 136	31.0 28.0 24.7	10.4 12.4 14.5	51.9 61.0 63.2	1.8	Y180L-6 Y200L1-6 Y200L2-6	15/380 18.5/380 22/380
65ZJG-I-A48B	1480	54 90 112	77.2 67.0 60.2	32.7 38.6 42.3	34.7 42.5 43.4	2.5	Y225M-4 Y250M-4 Y250M-4	45/380 55/380 55/380
65ZJG-I-A48B	980	36 60 74	33.8 29.4 26.4	9.5 11.2 12.3	34.7 42.5 43.4	1.6	Y180L-6 Y200L1-6 Y200L1-6	15/380 18.5/380 18.5/380
150DG-A50	980	123 221 279	44.6 40.1 37.2	27.6 36.9 43.4	54.1 65.4 65.2	3.5	Y250M-6 Y280S-6 Y280M-6	37/380 45/380 55/380
150DG-A50	730	92 165 208	24.7 223 20.6	11.4 15.3 17.9	54.1 65.4 65.2	2.1	Y200L-8 Y225M-8 Y250M-8	15/380 22/380 30/380
100DG-B45C	1480	112 198 233	66.6 62.3 58.7	49.7 63.1 69.5	40.9 53.2 53.6	7.5	Y280S-4 Y280S-4 Y280M-4	75/380 75/380 90/380
100DG-B45C	980	74 131 154	29.2 27.3 25.7	14.4 18.3 20.1	40.9 53.2 53.6	3.6	Y200L1-6 Y225M-6 Y225M-6	18.5/380 30/380 30/380
100DG-B33CS	1480	85 136 171	94.1 90.7 82.9	47.6 60.0 65.8	45.8 56.0 58.7	7.1	Y250M-4 Y280S-4 Y280M-4	55/380 75/380 90/380
100DG-B33CS	970	56 89 112	40.4 39.0 35.6	13.5 16.9 18.5	45.8 56.0 58.7	3.4	Y200L1-6 Y200L2-6 Y225M-6	18.5/380 22/380 30/380
